Exposure machines

UV exposure units that transfer your artwork onto resist-coated metal or dry film with sharp, repeatable registration — from standard single-side frames to UV-LED, CCD auto-alignment and LDI laser direct imaging for every PCB and etching line.

The exposure machine is the step that defines feature accuracy in PCB fabrication and photochemical etching. GE units use uniform UV or UV-LED light and a vacuum frame for tight film-to-resist contact, while CCD and LDI models add automatic optical alignment — so fine lines and double-sided registration come out crisp before developing and etching. The range splits into single-side and double-side machines:

Single-side exposure

Single-side exposure machines

One-side artwork transfer for nameplates, signage, stencils and single-sided boards — from a standard frame to large-format and UV-LED.

Standard

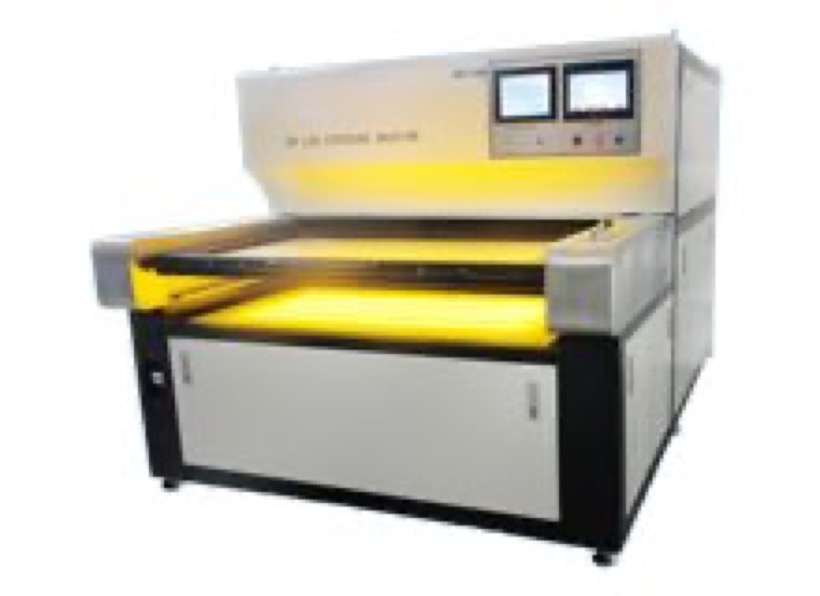

Standard Single-Side Exposure Machine

ModelGE-EXP650
Area650 × 900 mm

Entry UV vacuum unit for one-side artwork. View specs →

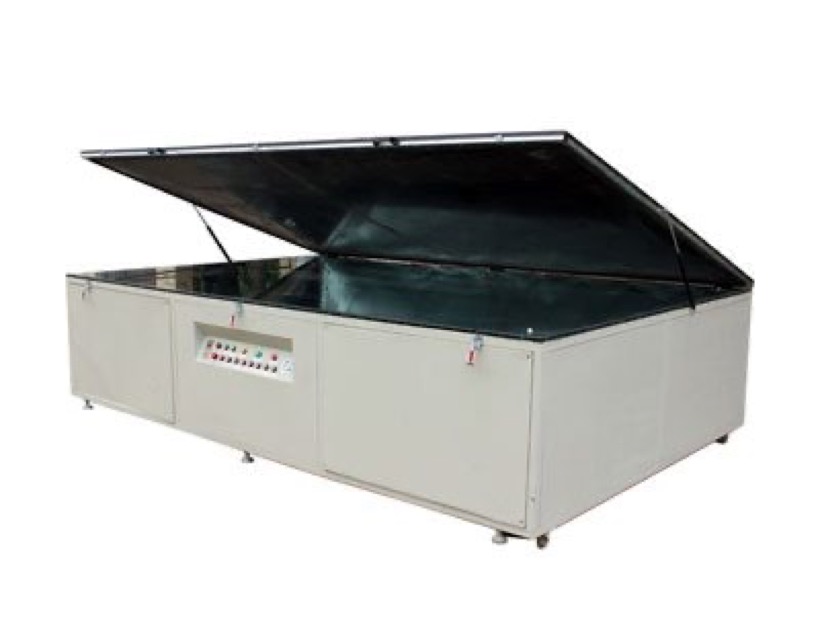

Large format large-format screen and plate vacuum exposure machine GE-EXP1600

Large-Format Exposure Machine

ModelGE-EXP1600
Area1300 × 1600 mm

Big vacuum bed for plates & decor panels. View specs →

UV-LED

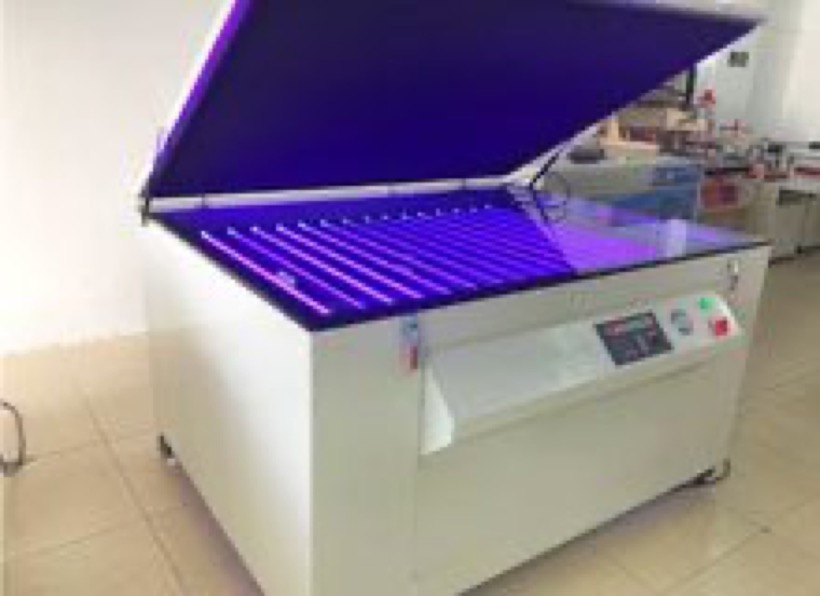

UV-LED Single-Side Exposure Machine

ModelGE-LED1200
Light365–420nm LED

Cold LED light, ~80% energy saving. View specs →

Double-side exposure

Double-side & automatic exposure machines

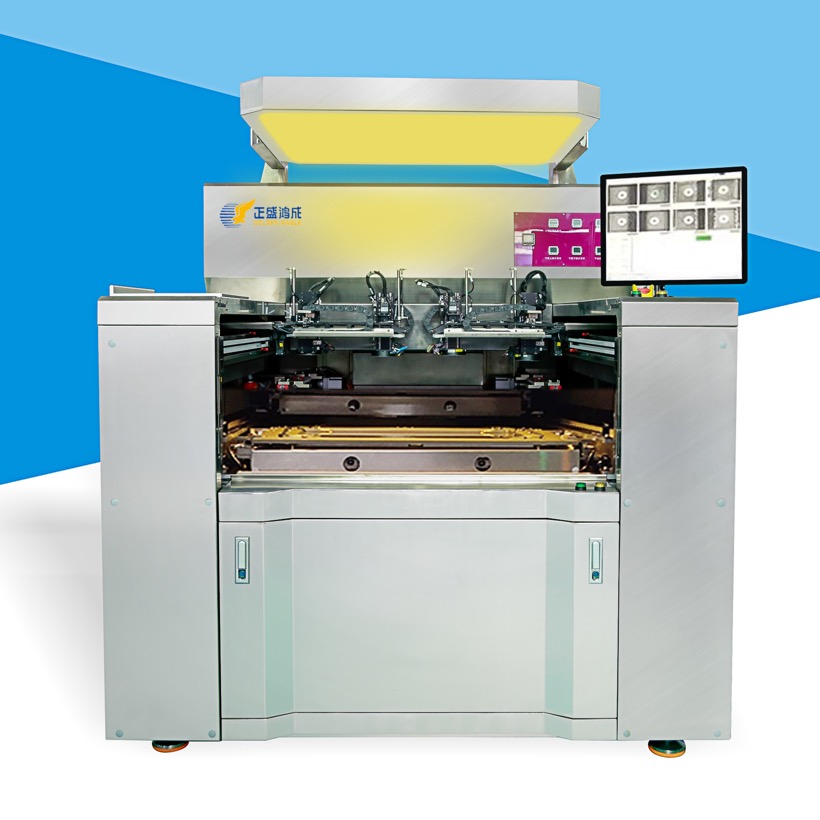

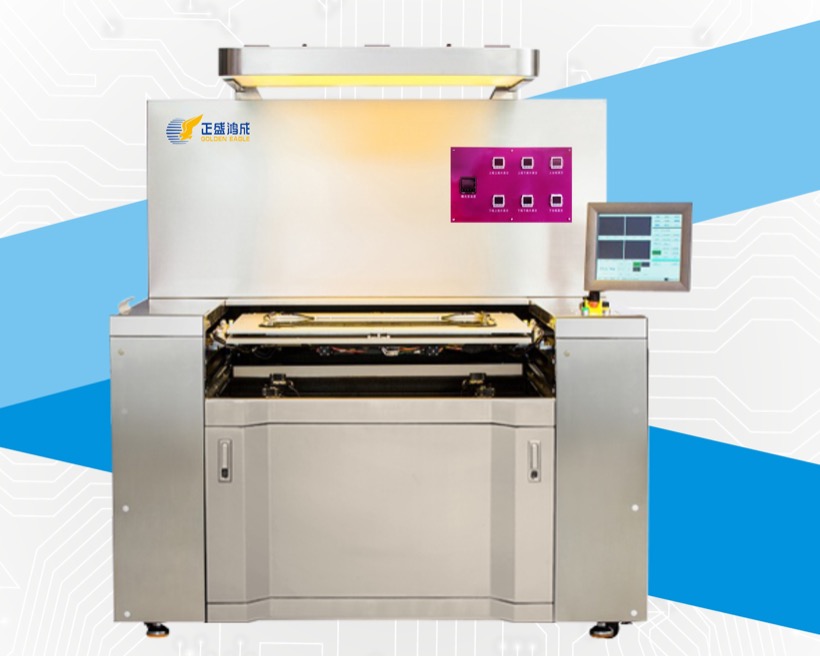

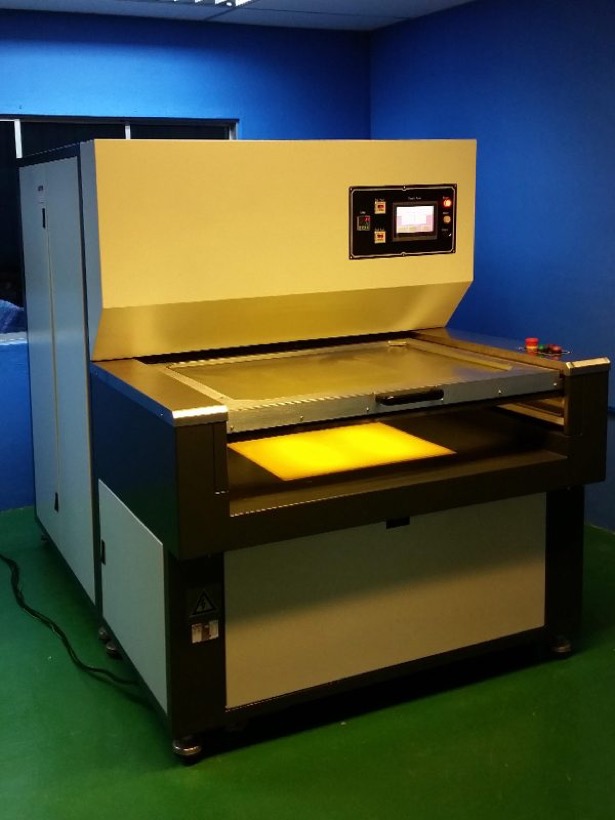

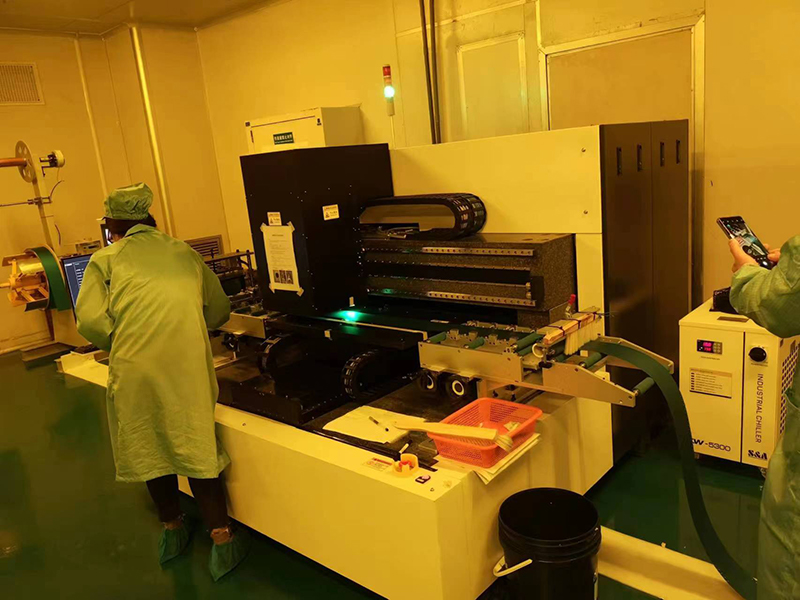

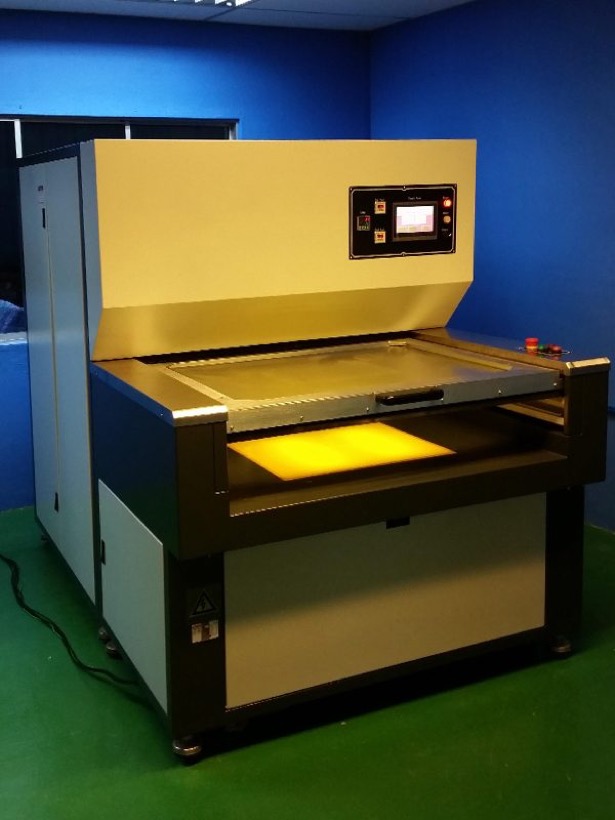

Registered two-side exposure for PCB and double-etched metal — twin-lamp UV, UV-LED, 4-CCD and 8-CCD automatic alignment, and filmless LDI laser direct imaging.

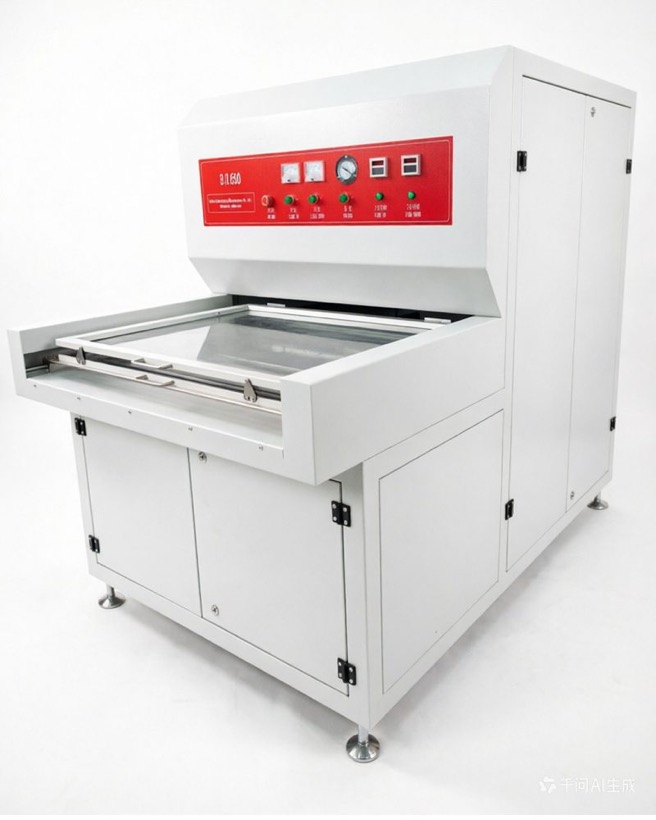

UV double
