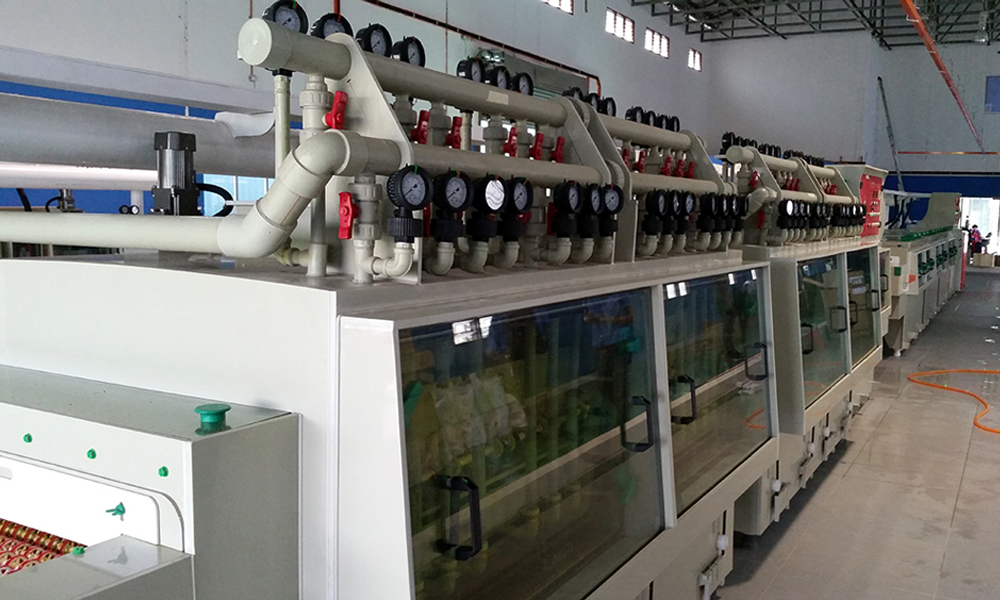

JM12 Auto Photochemical etching line
Power: 380V/50Hz/20kw
Etching Area: 600*4000mm
Working size: 600mm*L (L is not limit)
Transfer Speed: 0.5 -6m/min
Out size: L*W*H = 12000*1500*1650mm
Control system: PLC panel(Temperature, Pressure, Single window operation)

Processing: Enter → Etching → Active → Etching → Roll drying → Washing → Stripping → Pressure washing → Roll drying → Hot-wind → Out

Auto Photochemical etching line for precision machining works, such as TV shadow masks, Lead frames, encoder, disk, Grids, Sieves, Meshes, Washers, Shims, Gaskets and so on.
